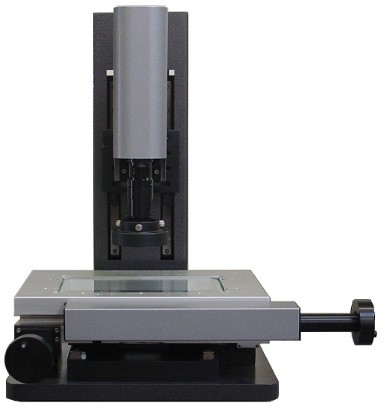

EZ0804MV-XYZ Manual Measuring System

Model
EZ0804MV-XYZ: 8 x 4 x 5 inch
Manual operation

Encoder
0.0005 mm linear scale on XY and 0.0002um encoder on Z

Optics
6X detent zoom has optical zoom range 0.7X - 4.2X, total zoom range 20X - 120X.

Camera
3M (2048 x 1536) color

Illumination
LED ring and back lighting, manual adjustable.

Software
DMP1500

EZ0804MV-XYZ is an easy-to-use, powerful video based 3-axis manual measuring system. 3M digital camera, the ultra-large image without compression and conversion greatly improves the sub-pixel accuracy and throughput. The software selectable resolution balances the speed and resolution.

The basic system uses DMP1500 dimensional measurement and imaging software. The software is very easy-to-use and provides functions for broad applications. Such as measurement, inspection, comparison, annotation, image capture and documentation. Optional DMP-3000 software is designed for video manual measuring system with edge detection and part programming. It provides full video CMM measuring capability and is easy-to-learn. The stage mapping capability greatly improves the system measurement accuracy. The software also provides broad imaging functions to have a value added on the system.


Computer
Dell desk-top & 22" LCD monitor. Windows 7 / 8 Professional

Dimension
16 (W) x 24 (D) x 24 (H) inch

Options

Computer
All-in-one with 23" touch screen, Window 8 Professional.

Illumination
Co-axial, color and others.

Software
DMP3000
