Digital Precision Corp

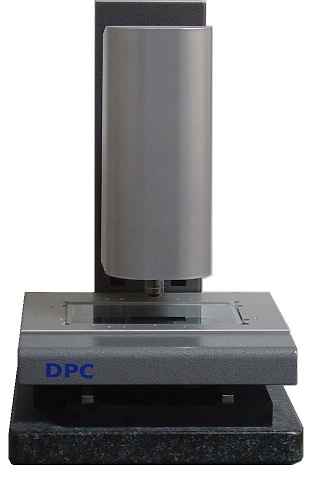

EZ0804-AV DCC Measuring System

Computer Control XYZ Precision Measurement

Model
EZ0804AV-XYZ: 8 x 4 x 5 inch
Motorized and computer control XYZ

Encoder
0.0005 mm linear scale on XY and 0.0002um encoder on Z

Optics
6X detent zoom has optical zoom range 0.7X - 4.2X, total zoom range 20X - 120X.

Camera
3M (2048 x 1536) color

Illumination
LED ring, coaxial and back lighting, computer control adjustable.

Software
DMP4000

EZ0804AV is powerful video based 3-axis, computer control, motorized measuring system. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations.

The DMP4000 software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.

Computer
Dell desk-top & 22" LCD monitor. Windows 7 / 8 Professional

Dimension
16 (W) x 24 (D) x 24 (H) inch

Options

Computer
All-in-one with 23" touch screen, Window 8 Professional.

Optics
5X or 10X objective, up to 1200X total magnification.
