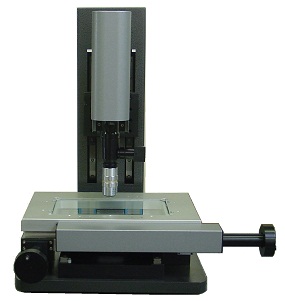

EZ0804MV-AZ Manual Measuring System With Auto-focus

Precision Height Measurement

Model
EZ0804MV-XYZ: 8 x 4 x 5 inch
Manual XY operation and motorized Z

Encoder
0.0005 mm linear scale on XY and 0.0002um encoder on Z

Optics
6X detent zoom plus 10X objective has optical zoom range 7X - 42X, total zoom range 200X - 1200X.

Camera
3M (2048 x 1536) color

Illumination
LED ring, coaxial and back lighting, computer control adjustable.

Software
DMP3000

EZ0804MV-AZ is powerful video based 3-axis manual measuring system. It has motorized Z-axis with auto-focus to measure Z height precisely. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

The system uses DMP3000 dimensional measurement and imaging software. The software is designed for video manual measuring system with edge detection and part programming. It provides full video CMM measuring capability and is easy-to-learn. The stage mapping capability greatly improves the system measurement accuracy. The software also provides broad imaging functions to have a value added on the system.

Computer
Dell desk-top & 22" LCD monitor. Windows 7 / 8 Professional

Dimension
16 (W) x 24 (D) x 24 (H) inch

Options

Computer
All-in-one with 23" touch screen, Window 8 Professional.
