Inexpensive, high precision XY manual digital video measuring system. Track post with fine focus

  Color digital camera
  8 x 4 inch XY travel
  1 um linear encoder on XY
  Navitar 6.5X detent zoom
  Manual LED ring and back light

Compact, high precision XYZ manual digital video measuring system.

  Color digital camera
  8 x 4 x 5 inch XYZ travel
  1 um encoder on XY and 0.2um encoder on Z
  Navitar 6.5X detent zoom
  Manual LED ring and back light

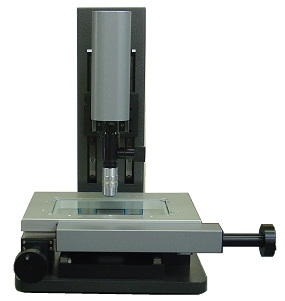

High precision height measuring system. Manual XY and motorized Z with auto-focus.

  Color digital camera
  8 x 4 x 5 inch XYZ travel
  1 um encoder on XY and 0.2um encoder on Z
  Navitar 6.5X detent zoom plus 10x objective
  Manual LED ring, co-axial and back light

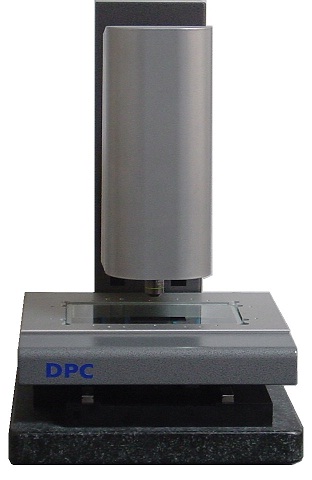

Compact, computer control, motorized digital video measuring system.

  Color digital camera
  8 x 4 x 5 inch XYZ travel
  1 um encoder on XY and 0.2um encoder on Z
  Navitar 6.5X detent zoom
  Programmable LED ring and back light
