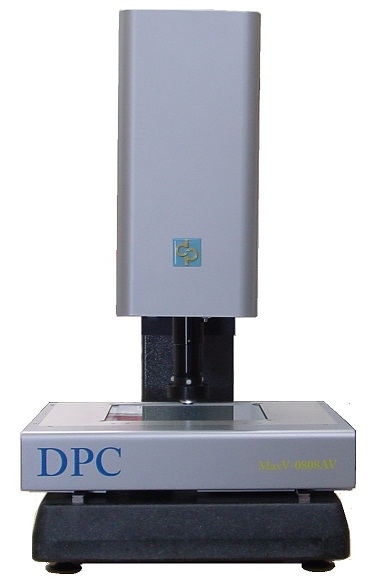

Full computer control, motorized, high precision, compact digital video measuring machine.

  8 (X) x 8 (Y) x 6 (Z) travel
  Granite base
  0.1 um linear encoders on XYZ
  Stepper driven XYZ. Joystick control
  1.4M (1360 x 1024) CCD digital camera
  Programmable Navitar 12X motorized zoom
  Programmable LED ring, co-axial and back light
  DMP4000 metrology software
  Dell mini-tower computer and 22" LCD monitor
  Windows 7 Professional

Datasheet

Full computer control, motorized, high precision, compact digital video measuring machine.

  12 (X) x 8 (Y) x 6 (Z) travel
  Granite base
  0.1 um linear encoders on XYZ
  Stepper driven XYZ. Joystick control
  1.4M (1360 x 1024) CCD digital camera
  Programmable Navitar 12X motorized zoom
  Programmable LED ring, co-axial and back light

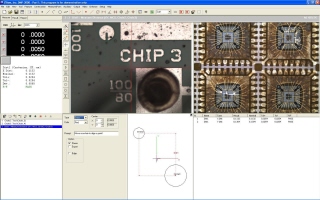

  DMP4000 metrology software
  Dell mini-tower computer and 22" LCD monitor
  Windows 7 Professional

Datasheet

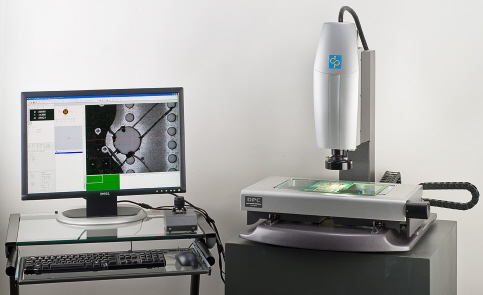

Full computer control, motorized, high precision, compact digital video measuring machine.

  12 (X) x 8 (Y) x 6 (Z) travel
  Granite base
  0.1 um linear encoders on XYZ
  Stepper driven XYZ. Joystick control
  1.4M (1360 x 1024) CCD digital camera
  Programmable Navitar 12X motorized zoom
  DMP4000 metrology software
  Dell mini-tower computer and 22" LCD monitor
  Windows 7 Professional

Datasheet

Configuration

The series has different configurations for different applications:

  MaxVxxAV: General purpose metrology system
  MaxVxxAV-LR: Vision and laser metrology system
  MaxVxxAV-LS: Linescan metrology and inspection system
  MaxVxxAV-MC: Multiple camera system
