  MaxV Configuration

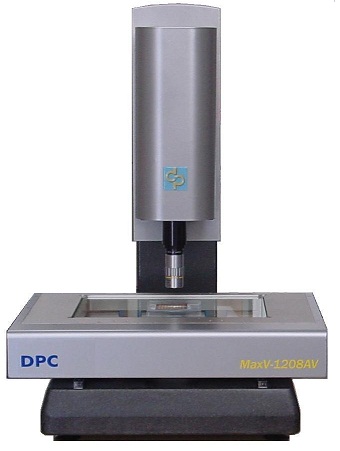

MaxVxxAV

Motor driven, programmable, high speed and high accuracy

  0.1 um linear encoders
  12X programmable zoom
  3M digital camera
  Programmable quadrature ring, co-axial and sub-stage illumination



Model

MaxV0808AV: 8x8x6 inch

MaxV1208AV: 12x8x6 inch

MaxV1206AV: 12x12x6 inch

MaxVxxAV-LS

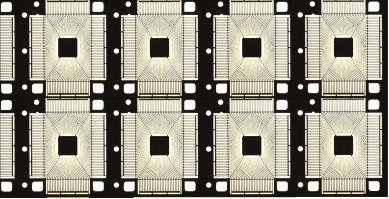

Linescan camera for high speed measurement and inspection

  8160 maximum line pixel
  Color or BW
  High speed scan
  Precision measurement and defect inspection



MaxVxxAV-MC

MaxV supports dual or more optics and cameras for special applications.

  High magnification and very large FOV optics combination. Large FOV for overall measurement and inspection and high magnification for details.
  Linescan optics and zoom optics combination. Linescan for overall measurement and inspection and high magnification for details.
  Top and bottom optics combination for offset and thickness measurement.
  Multiple optics and cameras from different views. Such as top, front and sides to measure or inspect parts without rotating the parts.


MaxVxxAV-LR

For precision height measurement and 3D profiling

  Triangular or ConoProbe laser. White light sensor
  Measurement accuracy can be better than 0.1 um
  Point, line or area scan
  Height, profile and surface measurement
  Video assist alignment and programming



High Magnification Option

Very small dimension measurement and analysis

  Zoom optics with choices of objective
  Precision XYZ 3D measurement
  Auto-focus for precision height measurement
  Programmable lighting and zoom.
  Rich imaging processing functions
